The Series

Level: Moderate

This series assumes the developer is familiar with .NET MAUI, the Model-View-ViewModel pattern, and has worked through one or more tutorials such as the excellent James Montemagno's Workshop.

Source: https://github.com/bladewolf55/net-maui-progression

• Part 1 - Adding the View Model
• Part 2 - (The Problem With) Basic Unit Testing
• Part 3 - Adding the Model
• Part 4 - Putting the View in Its Place
• Part 5 - Restyling From Scratch
• Part 6 - Revisiting Unit Testing
• Part 7 - Deploying, the Other People's Links Edition

Moving the View

Compared to the last part, this one's really short.

Our app has one view, MainPage, sitting in the root of the project. Like the rest of this series, that's fine for a small app with just a few views. But let's keep our app tidy and pretend it's going to have a dozen views.

Which might be an awful lot for a mobile app.

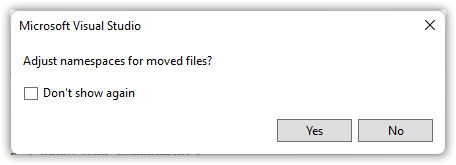

In the Maui.Progression project, add a folder named "Views" and move the MainPage files (MainPage.xaml and MainPage.xaml.cs) into it. When prompted to adjust namespaces, choose Yes.

Trickery, trickery, trickery¹ Neither of our files' namespaces got updated.

Open MainPage.xaml.cs and update the namespace.

using Maui.Progression.ViewModels;

namespace Maui.Progression.Views;

Open MainPage.xaml and update the page's x:Class namespace.

<?xml version="1.0" encoding="utf-8" ?>
<ContentPage xmlns="http://schemas.microsoft.com/dotnet/2021/maui"
             xmlns:x="http://schemas.microsoft.com/winfx/2009/xaml"
             x:Class="Maui.Progression.Views.MainPage"

We also need to edit MauiProgram.cs to add Maui.Progression.Views.

using Maui.Progression.DomainServices;
using Maui.Progression.DomainServices.Interfaces;
using Maui.Progression.ViewModels;
using Maui.Progression.Views;

And the AppShell.xaml "local" namespace.

<?xml version="1.0" encoding="UTF-8" ?>
<Shell
    x:Class="Maui.Progression.AppShell"
    xmlns="http://schemas.microsoft.com/dotnet/2021/maui"
    xmlns:x="http://schemas.microsoft.com/winfx/2009/xaml"
    xmlns:local="clr-namespace:Maui.Progression.Views"

Run the program and the tests. Et voila! it works.

Wrap Up

I know, I know. "Jeez, that was easy, what was the point?"

The point is that we now have a well-organized application, which increases maintainability. We're following a View-Model-ViewModel pattern, and our Views, View Models, and Models are corralled into their metaphorical pens. We also saw just how pervasive and important the namespaces are, and that--unlike some other refactoring--Visual Studio doesn't (today) catch everything.

Next Up: Styles!
